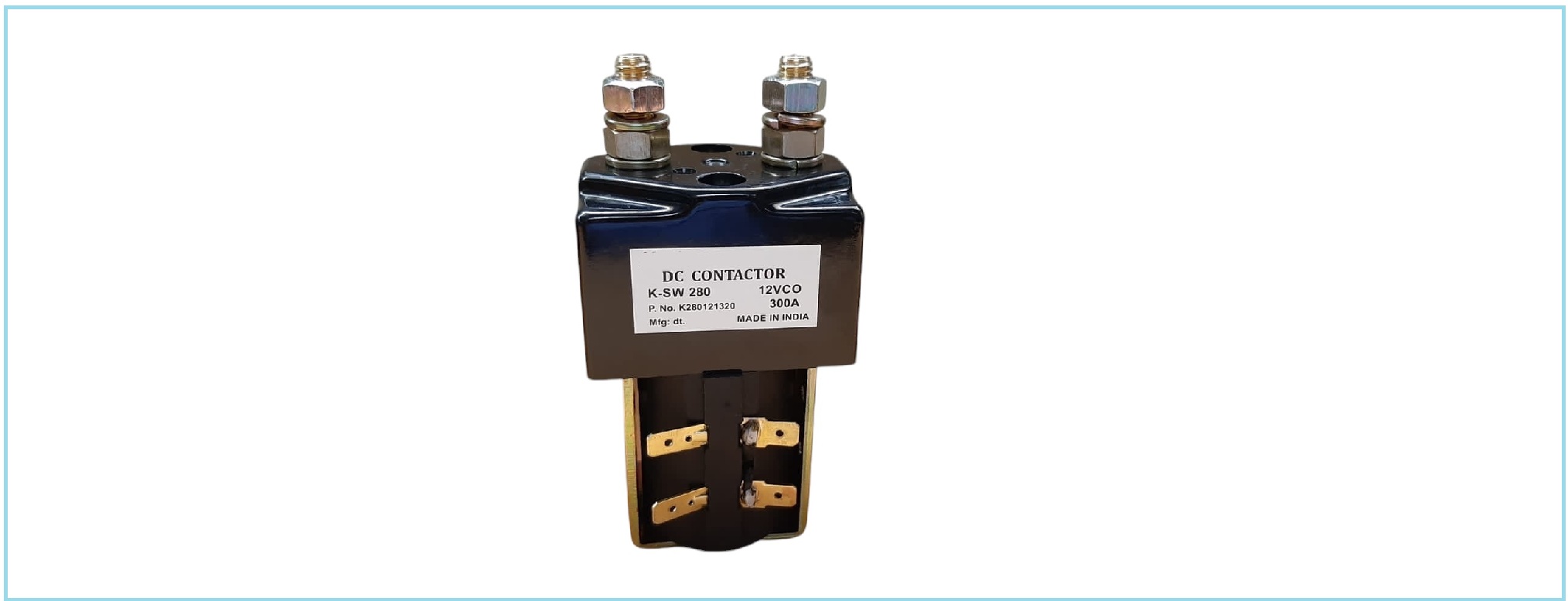

Main DC Contactor: High-Power Switching for Electric Drive Systems

The Main DC Contactor is a critical component in Charging Station and battery-powered systems, designed to control the flow of high-voltage direct current. It acts as a switch that connects or disconnects the main power circuit to the motor or controller, ensuring safe startup and shutdown operations.

These contactors are built to handle high current loads and are typically used in traction applications, battery management systems (BMS), inverters, and industrial automation. They offer fast switching response and arc suppression features to protect both the circuit and connected components.

Many modern DC contactors come with built-in economizer circuits to reduce power consumption after the coil is engaged. This enhances thermal efficiency while maintaining strong magnetic hold during operation.

"The Main DC Contactor is the gatekeeper of high-current systems—enabling safe, efficient, and reliable power delivery."

Without a main DC contactor, high-voltage systems remain continuously active, increasing safety risks. By integrating one, system designers gain control over energy flow and improve fault isolation capabilities, especially in critical power environments.

Applications of Main DC Contactors

DC contactors are used across high-voltage and current-switching applications, including:

1. Charging Station: Manage battery-to-controller power flow, isolation, and pre-charge sequencing.
2. Battery Storage Systems: Enable controlled energy transfer and load disconnection during faults.
3. Industrial Equipment: Used in automation panels and heavy DC load switching.
4. Solar Inverters: Control DC input lines before conversion to AC output.
